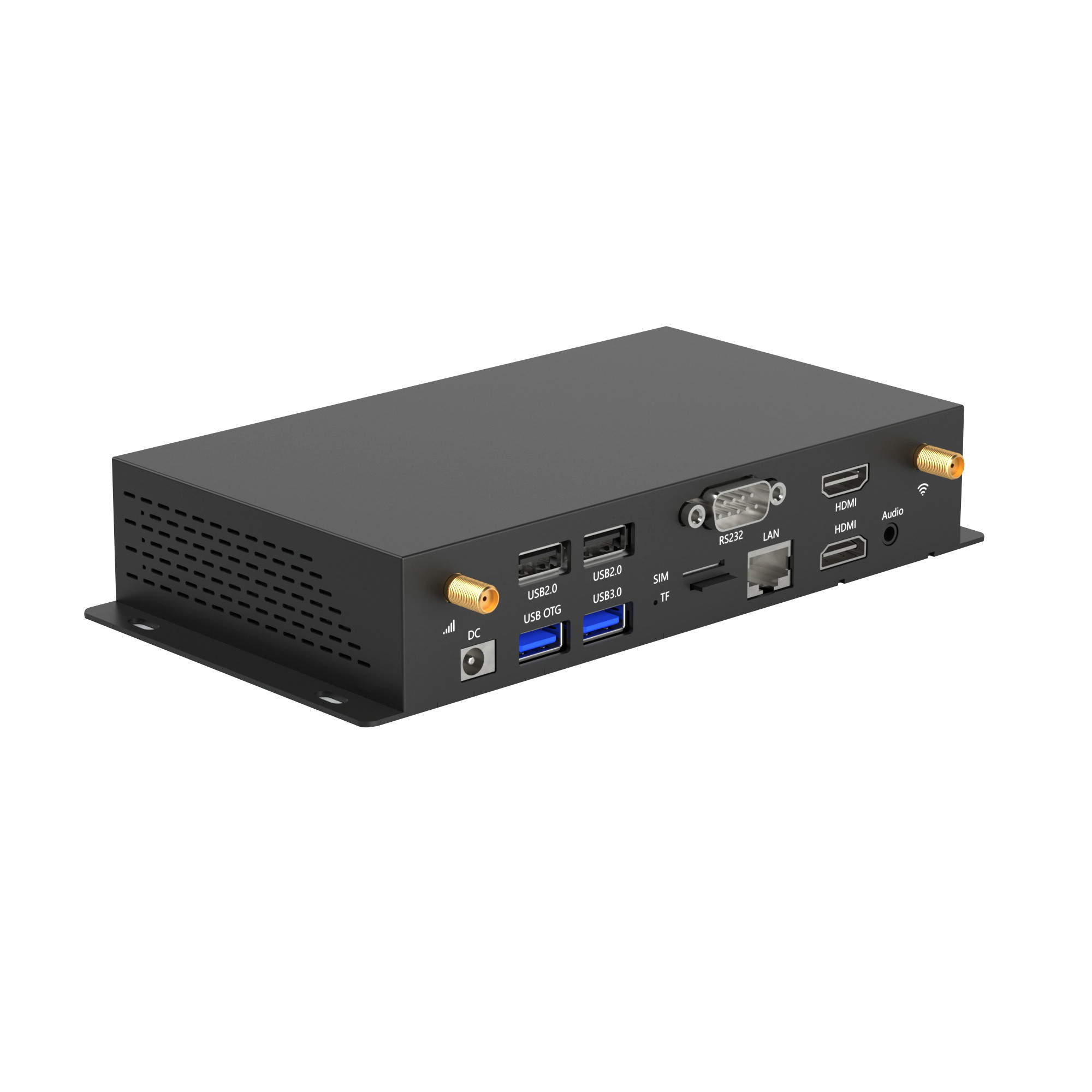

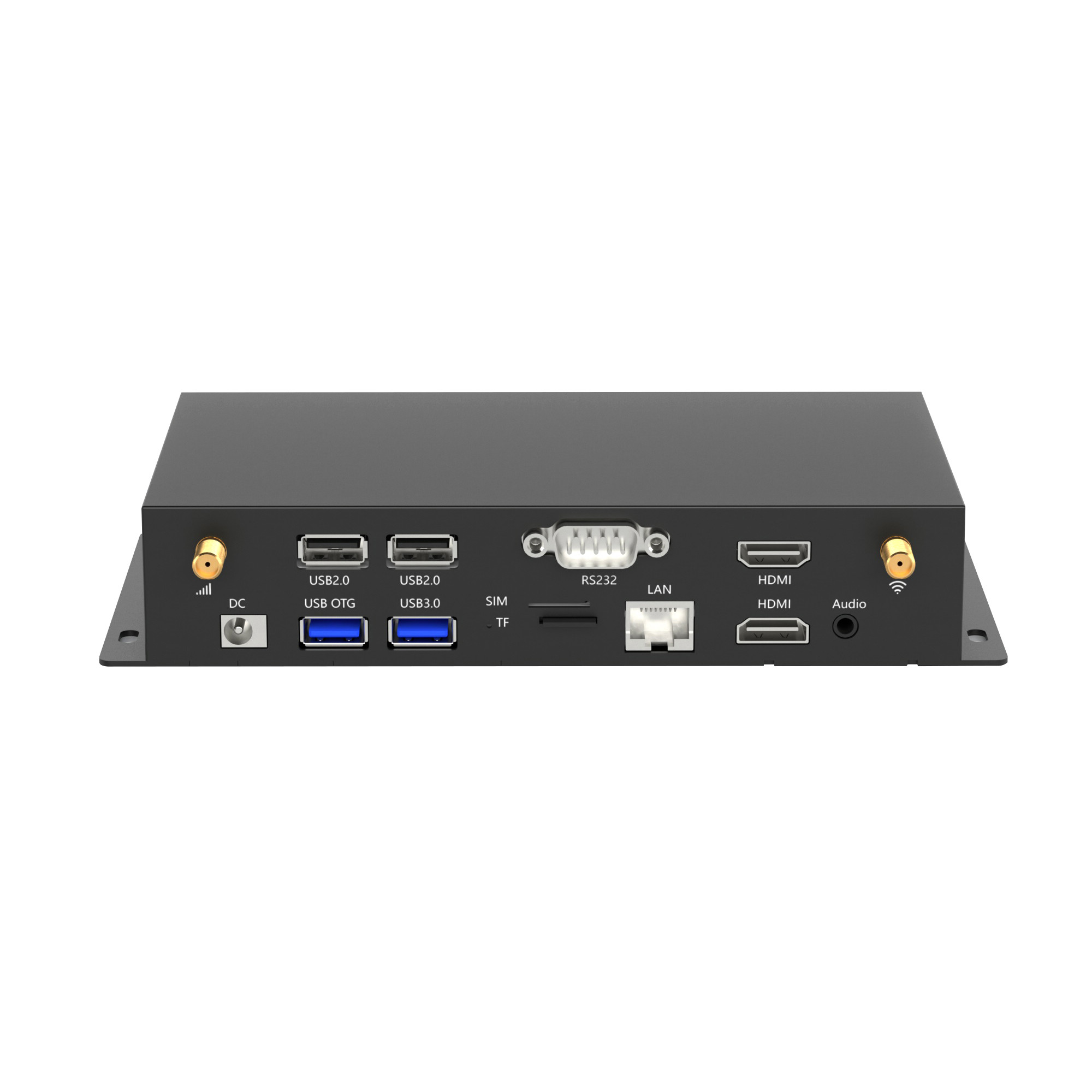

Android 7-12 OS Digital Signage Media Player Box RK3328 RK3288 RK3399 RK3568 RK3588 Optional

Brand Name : ADW, SUNCHIP

Model Number : AD-0140 BOX

Certification : CE, FCC, Rohs

Place of Origin : China

MOQ : 1PCS

Price : Negotiable

Payment Terms : T/T, Western Union, PayPal

Supply Ability : 10000 pcs per month

Delivery Time : 30 days

Packaging Details : 1PCS/BOX, 5PCS/Carton

CPU : RK3288 quad-core Cortex-A17@1.8G GPU Mali T764

Ram : 2GB

Rom : 16GB

Material : Metal

OS : Android 7.1, 9.0, 10.0 etc.

WIFI : 802.11 b/g/n

Charger type : US/UK/EU optional

Resolution : 2k / 4K optional

Customizable Interface : Yes

Name : Media Player

Contact Now

RK3328 RK3288 RK3399 RK3568 RK3588 Android 7-12 OS Digital Signage Media Player Box With WIFI BT LAN 4G LTE Optical etc.

Industrial player for advertising 24/7

Advertising media box 2GB+16GB WIFI/BT/LAN/4G lte Android OS

Android Digital Signage Advertising Media Player Box android 7.1-10.0

digital signage advertising 4k player Box

Sunchip Android Media Player Box for digital signage:

(1) FHD & 4K media player Box is used for industrial grade application.

(2) WIFI/Bluetooth/Ethernet/Optical/4G functions optional

(3) Metal case, lots of Holes on the case, heat sink etc. for the best heat dissipation

(4) G-Sensor, rotation automatically or manually

(5) Android 6.0 until android 11 OS version

(6) 7*24hours for not-stopping working

1)Rockchip RK3328: Only android 7 OS, 4K Quad-Core, Model AD-B01 BOX.

2)Rockchip RK3288: android 7, 9, 10 OS, 4K Quad-Core, Model AD-B02P BOX.

3)Rockchip RK3399: android 7, 9, 10 OS, 4K Hexa-Core, Model AD-B03 BOX.

4)Rockchip RK3568: android 11 OS, 4K Quad-Core, Model AD-0146 BOX.

5)Rockchip RK3588: android 12 OS, 8K Octa-Core, Model AD-0160 BOX.

Model No.: AD-0140 BOX Model Name: Android Media player box
Size: 170*96*20MM

Hardware Spec
Operation System Android 7, 9.0 Android 10
Language Chinese,English...Multi-Language support
CPU RK3288 Quad-core ARM Cortex-A17 MPCore processor
GPU ARM Mali-T764 GPU
SDRAM DDR3 2GB
Flash 16gb, 32GB(EMMC)
Network RJ45 10/100M Ethernet
WIFI Module AP6212
Power Supply DC 12V/3A 5.5mm DC-in
Camera 200W /500W
Interface
support maximum 4Kx2K@30fps max resolution
output
USB Port 1*USB Host 1*USB OTG
AUDIO Out 1*3.5mm Headphone Jack
Network 1*RJ45 10/100/1000M Ethernet
Power Supply 1*DC Jack 12V/3A 5.5mm DC-in
TF card Interface TF Card, up to 32GB
External antenna 2.4G/ 5G 3dbi optional
Media Parameter
Audio Container Supports MP3,WMA,WAV, APE, FLAC, AAC, OGG,M4A,3GPP
Video Decoder Supports *.mkv,*.wmv,*.mpg, *.mpeg, *.dat, *.avi, *.mov, *. *.mp4, and *.jpg file formats
Video Encoder H.264/MVC/VP8 encoder by 1080p@30fps
Resolution Maximum resolution is 4Kx2K
H.265 Data Rate H.265 decoder by 2160p@60fps
Software Extension APK install
Infrared remote control IR remote
IM Software Support Skype/QQ/MSN/GTALK (Depends on APK)
Offic Software WORD/EXCEL/PDF(Depends on APK install)
Others Parameters
Operationg Temperature 0~70℃
Storage Temperature -10~70℃
Humidity environment 5%-90%(No condensation)
Package
Dimension 258*147*67MM
Net weight 0.534kg
Gift Box Size 195*153*70mm
Packing accessories
1, AC cable
2, 12V/3A adapter
3, Remote control
4, External antenna

Android 7-12 OS Digital Signage Media Player Box RK3328 RK3288 RK3399 RK3568 RK3588 Optional

Android 7-12 OS Digital Signage Media Player Box RK3328 RK3288 RK3399 RK3568 RK3588 OptionalAndroid 7-12 OS Digital Signage Media Player Box RK3328 RK3288 RK3399 RK3568 RK3588 Optional

Android 7-12 OS Digital Signage Media Player Box RK3328 RK3288 RK3399 RK3568 RK3588 OptionalAndroid 7-12 OS Digital Signage Media Player Box RK3328 RK3288 RK3399 RK3568 RK3588 Optional

Android 7-12 OS Digital Signage Media Player Box RK3328 RK3288 RK3399 RK3568 RK3588 Optional

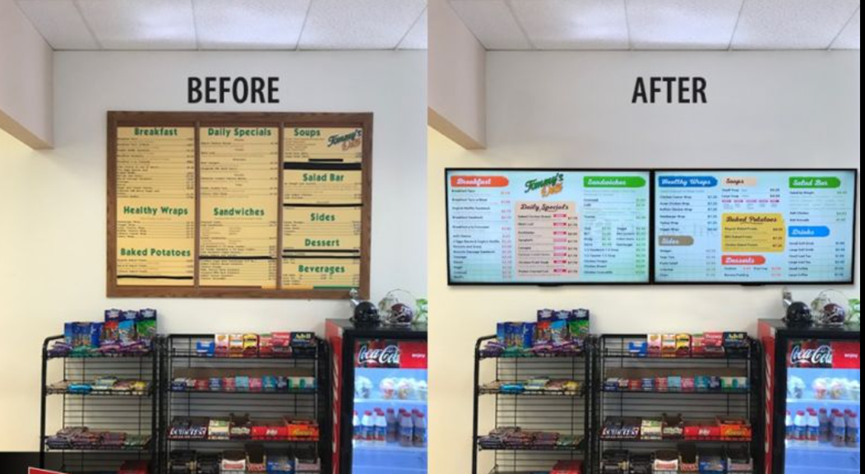

Restaurant Digital Menu Boards:

Android 7-12 OS Digital Signage Media Player Box RK3328 RK3288 RK3399 RK3568 RK3588 Optional

Retail shop - Digital Menu Boards:

Android 7-12 OS Digital Signage Media Player Box RK3328 RK3288 RK3399 RK3568 RK3588 Optional

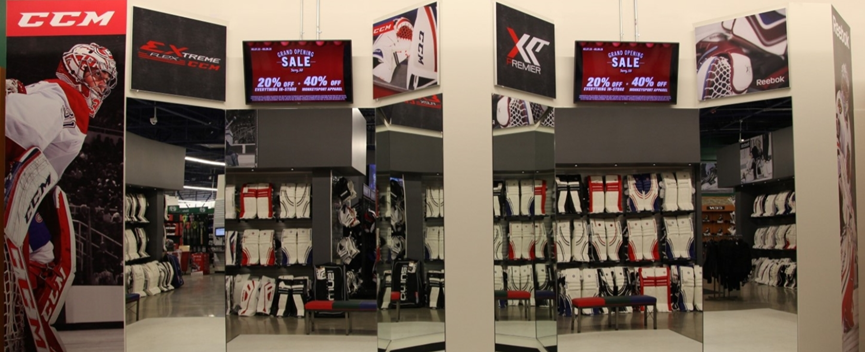

Retail Digital Signage:

Android 7-12 OS Digital Signage Media Player Box RK3328 RK3288 RK3399 RK3568 RK3588 Optional

About Sunchip :

Introduction of the advantages from Sunchip:

1, More than 10 years of PCBA design and production experience.

2, A R&D team of more than 80 people, including hardware engineers (layout, debugging) and software engineers (drivers, kernels, testing, apk engineers).

ID Design engineer, Mechanical Design engineer, -> Support OEM/ODM.

3, Team of more than 160 people.

4, One-stop service: PCB design, prototype, production, PCBA SMT, testing, shell design, assembly, software customization, QC control, after-sales.

5, Got ISO9001 factory certification.

6, More than 3500 square meters of office and factory area

We want to update you that,

Sunchip can provide AIO machine, can provide android board+ lcd touch panel, also can provide only android board.

Hardware and software solution are our biggest advantage.

8K Octa-Core: RK3588;

4K Hexa-Core: RK3399;

4K Quad-Core: RK3566, RK3568, RK3288, RK3328, RKPX30, RK3188, RK3128;

Glad to tell you we got ISO 9001:2015 Quality Certificate, CE/FCC certificates and we’re Rockchip strategic partner.

Our main products:

-Android embedded motherboard

-4K/8K player box of media or industrial

-Different kinds of AIO lcd digital signage display machine

Let me know if any interest, will be happy to show you more details by return. thanks!

FAQ

1) Q: Is SUNCHIP a factory or simply a trading company?

A: We are a TRUE OEM/ODM factory. Please read our COMPANY PROFILE, for more information on this issue.

2) Q: What payment methods are available to me?

A: We accept most of the payment methods: accept VISA, Pay Later,T/T,Western Union,Paypal and Cash.

3) Q: How long is the warranty time?

A: 1 Year.

4) Q: What are the shipment terms and delivery times of your company?

A: Delivery / production time is directly affected by the size of the order. Also depending in which season you are shipping.

5) Q: Do you give any discounts ?

A: Prices are directly affected by the quantity. We have many ways to help our partners when starting the sample processes. Make sure to ask our sales on how we can make you save some charges.

6) Q: I would like to add my company logo on your products, is this possible?

A: SURE.We customize on a regular basis products for many large retaillers and brands. If your order is at the below 10 units, we can consider this as a SAMPLE order, some fees might apply for the logo prints.

Different methodes are used for logos, please ask our sales for more information on this issue, we will surely find the right solution for you!
